Banana to DuPont connector

Started 16th August 2018

A connector with a banana socket on one side and four DuPont sockets on the other.

Why? My multi-meter leads have banana plugs on both ends. This allows easy change of "probe" - alligator clips, needle points, hooks etc. I'd like to connect the meter to breadboards using DuPont connectors.

The parts are a 3D printed shell, a banana socket, a (female) spade (crimp) connector, four DuPont sockets and some thick wire.

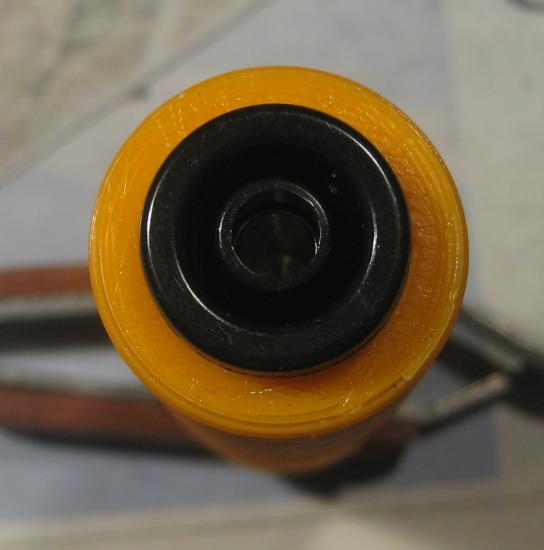

Banana to DuPont connector parts, David PillingBanana to DuPont connector parts, David PillingBanana to DuPont connector parts, David PillingBanana to DuPont connector parts, David PillingBanana to DuPont connector, David PillingBanana to DuPont connector, David Pilling

For some insight into what a "DuPont" connector actually is, see "COMMON WIRE-TO-BOARD, WIRE-TO-WIRE CONNECTORS, AND CRIMP TOOLS"
